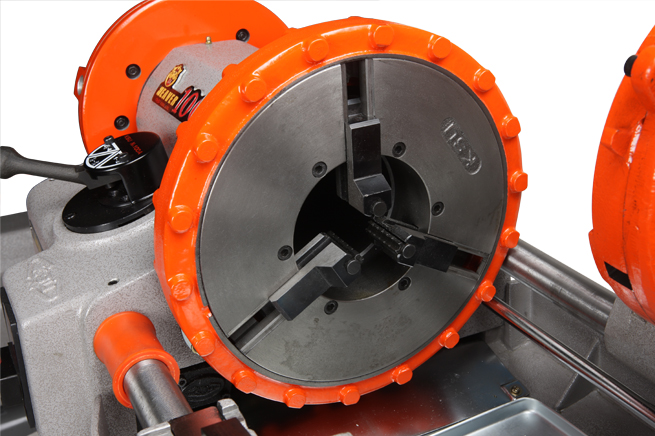

| Pipe threading machine KSU N100A[4"] |
|
|
|
 |
| Heavy duty Pipe threading machine Fulfilled the accuracy, Safety and economical. |
 |
|
|
 |
|
Quick-change pipe cutter
increases work efficiency
|
Built-in toll box is convenient for on-site work
Large-capacity scrap catcher
|
|
|
| ■ Specifications |
|
| Capacity |
½ - 4" (Threading. Cutting. Reaming) |
| Volatage |
AC 220 V (60Hz) |
| Motor |
Single-phase 1100 W condenser motor |
| Rotation Speed |
3 step : 12, 23, 40 r.p.m |
| Net Weight |
159 kg (350 lbs) |
| Dimension |
940 (L) × 640 (W) × 620 (H)mm
½”~2” Self-opening die head (1SET), 2½“~4” Profiling die head (1SET) |
|
| ☞ Votage made to order |
|
| ■ Features |
|
 |
|
 |

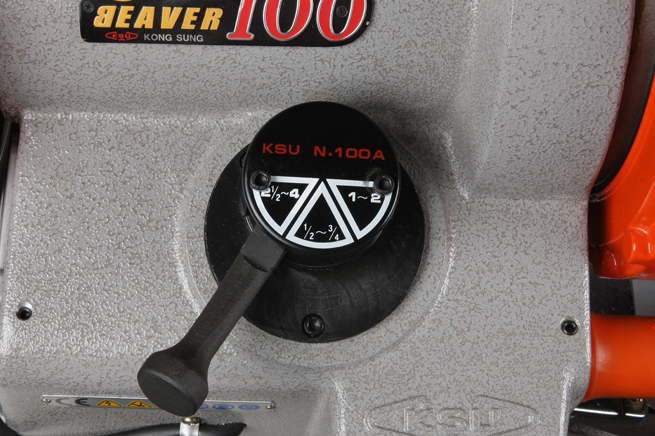

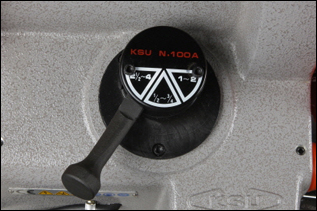

| Efficient 3-speed transmission makes the work go faster |
|

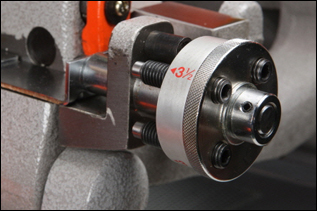

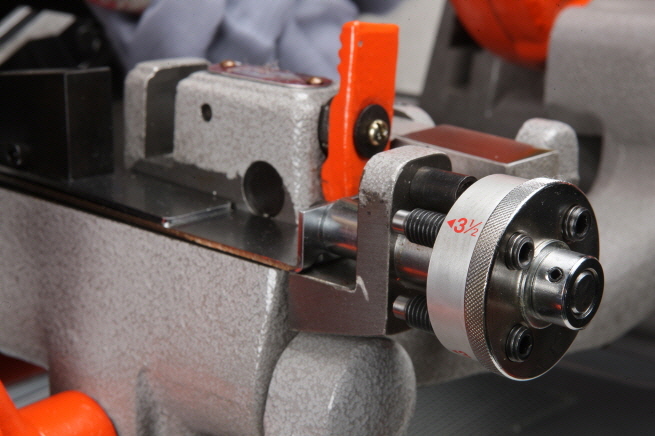

Threading size, thread length, and microfine
adjustment of thread diameter can all be adjusted easily |
 |
|
 |
| Apply special alloy steel. |
|

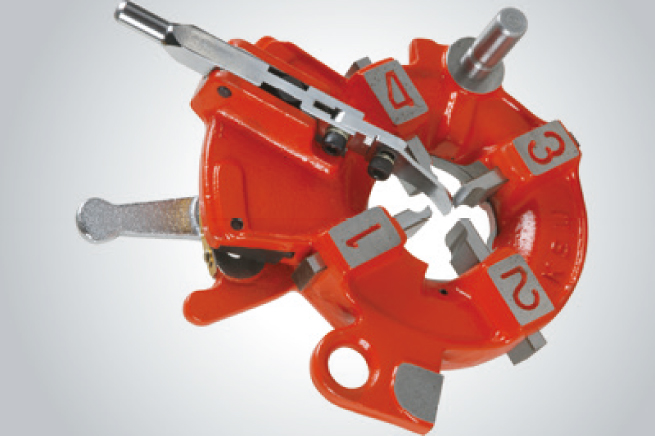

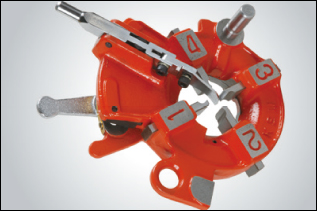

Use notch profiling die head has
low cutting resistance for optimum threading of large-diameter pipes.
(Self-lubri casting die head) |
 |
|
|

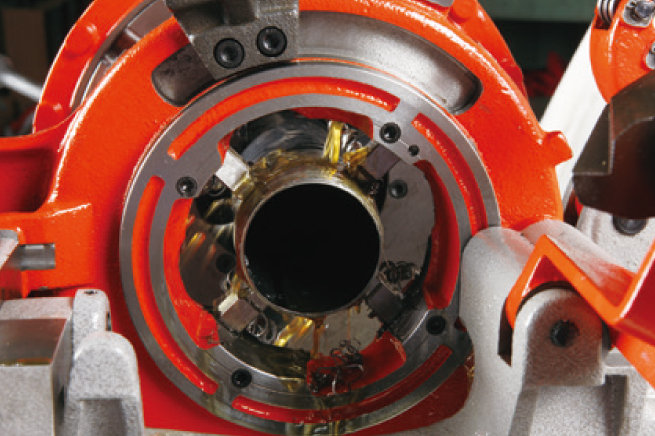

| Only 100 seconds to make a perfect 4" pipe taper thread |
|
|
|
|
